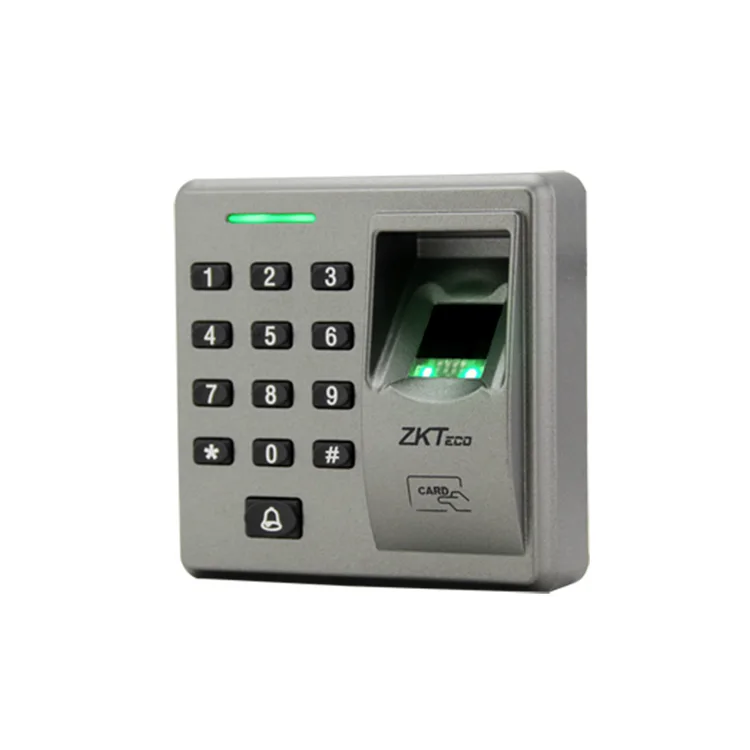

ZKTeco Indoor Slave Reader FR1300/ID
ZKTeco Indoor Slave Reader FR1300/ID RS485 Slave Reader Reads Fingerprint, RFID and Password
FR1300 is an indoor slave reader with RS485 interface that works with master controllers from ZKTeco, for example, inBIO series biometric control panels. As a value-added slave reader, FR1300 provides the most secure and cost effective access control solution for small and medium enterprises.
Overview
FR1300 is an indoor slave reader with an RS485 interface that works with master controllers from ZKTeco, for example, inBIO series biometric control panels. As a value-added slave reader, it provides the most secure and cost effective access control solution for small and medium enterprises.
Function
• Energy-saving, auto-sleep ZK infrared fingerprint sensor
• Built-in RFID card reader
• Supports passwords when working with inBIO series control panels
• LED and Buzzer prompt
• With doorbell function
• 86cmx86cm socket installation, easy operation
Configuration
‘;
Specification
Sensor | ZK Infrared Optical Sensor |
Communication | RS485 |
Built-in Card Reader | 125 kHz EM card reader, Optional Mifare card reader |
Optional Function | Mifare Card Module |
Power Supply | DC 12V |
Operating Temperature | 0°C ~ 45°C |
Operating Humidity | 20% ~ 80% |
Dimension | 88mm*88mm*33.6mm |
