Description
Totolink A1200PE Network card AC1200 Dual Band
Totolink A1200PE Network card AC1200 Dual Band
ABOUT PRODUCT

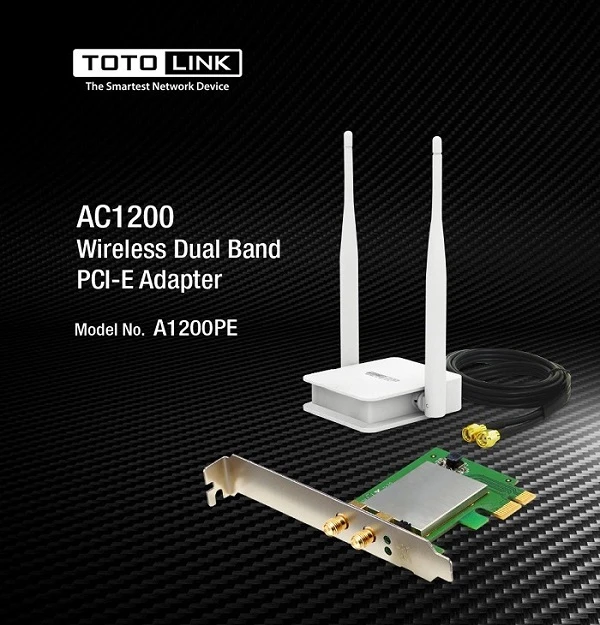

TOTOLINK A1200PE AC1200 – Wireless dual band network card/PCI-E adapter

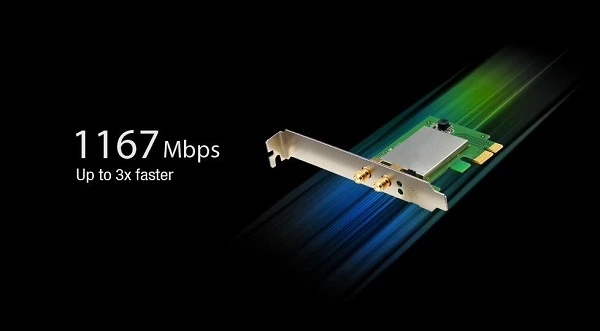

Totolink A1200PE is a PCI-E Dual Band wireless network card compliant with IEEE 802.11ac network standard. This wireless network card allows data transfer speeds up to 1167 Mbps (300 Mbps at 2.4 GHz and 867 Mbps at 5 GHz). The card has a PCI-E interface and two antennas with 5 dBi gain, which facilitates a stable connection of desktop computer to a high-speed wireless network. The network card supports WPA/ WPA2 encryption to ensure greater network security.
Features:
- Supports IEEE 802.11ac/n/g/b/a standards, up to 867 Mbps (5 GHz) or 300 Mbps (2.4 GHz)
- Two SMA connectors
- Next-generation 11ac Wi-Fi provides excellent wireless performance
- Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) encryption
- Works with all existing network infrastructures
- Easy to set up and monitor
- Works with Windows 10/8/7/Vista and Linux operating systems
AC technology – faster data rates
The A1200PE network card is compatible with 802.11ac wireless technology, which has improved data transfer speed compared to N technology.
Dual band
The A1200PE allows users to connect in the 2.4 GHz or 5 GHz bands to provide maximum speeds up to 300 Mbps in the 2.4 GHz band and 867 Mbps in the 5 GHz band.
Two high performance antennas
The Totolink PCI-E Adapter has two antennas that work with advanced MIMO technology, which provides a wide range and better stability of the wireless connection.
Wi-Fi network security
WPA/WPA2 (TKIP/AES) encryption is used to ensure the security of Wi-Fi networks.
SPECIFICATION
| Features / filters | |
| LAN standard | Not applicable |
| Maximum wireless transmission speed | 1200 Mb/s |
| Number of LAN ports | Not applicable |
| Number of WAN ports | Not applicable |
| Operating frequency | Dual Band (2.4GHz, 5GHz) |
| Wireless network standards | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, |
| Antenna gain | Under 10dbi |
| Antenna type | Outside |
| Application | Indoor |
| Built-in modem | None |
| Detachable antennas | No |
| Device type | PCI card |
| Management | By web browser |
| Type of case | Plastic |
| Type of device power supply | PCI Express |
| WiFi encryption | WEP, WPA-PSK, WPA-PSK/WPA2-PSK, WPA/WPA2, |
| Basic technical parameters | |
| Equipment features | |
| Interface | PCI-E |
| Antennas | 2 antennas 5 dBi |
| LED lights | 1* LINK 1* ACT |
| Wireless network features | |
| Standards | IEEE 802.11ac IEEE 802.11a |
| Frequency | 2.4 GHz /5 GHz |
| Data rate | 2.4 G: up to 300 Mbps 5 G: up to 867 Mbps |
| Network security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
| EIRP | < 20 dBm |
| Sensitivity of reception | 2.4G: 11b 11M: -81 dbm 11g 54M: -68 dbm 11n: HT20: -65 dbm HT40: -62 dbm 5G: 11a 54M: -68 dbm HT20 -65 dbm HT40: -62 dbm 11ac HT80: -61dbm |
| Other | |

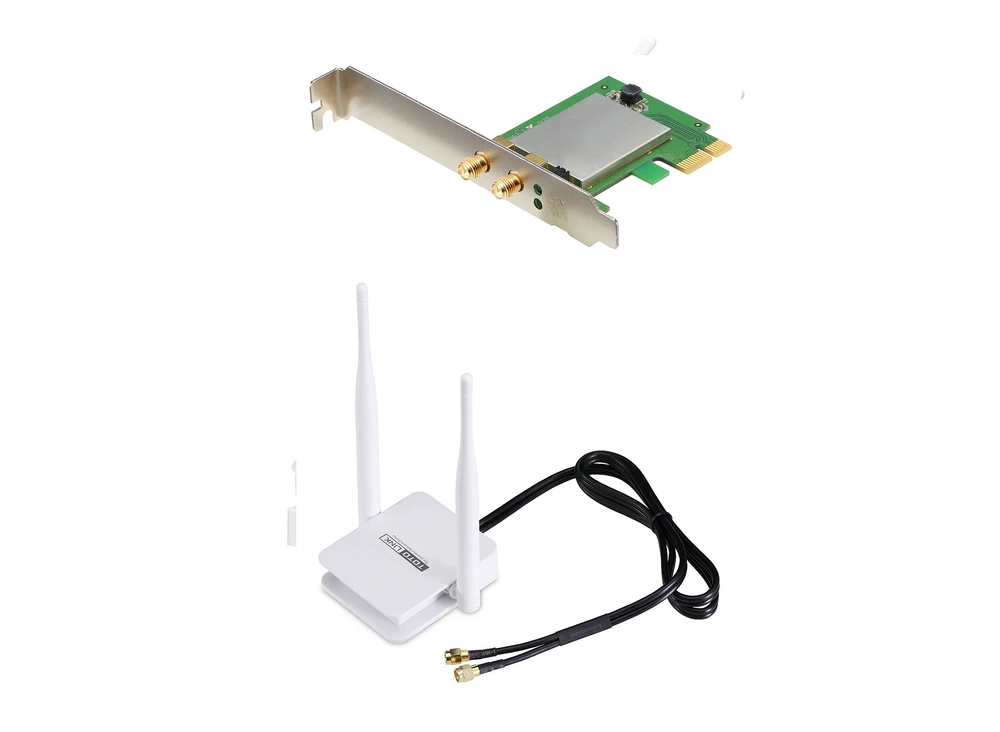

| The packaging contains | A1200PE PCI-E card *1 5 dBi antenna with extension cable *2 CD *1 Low profile holder *1 User’s manual *1 |
| System requirements | Windows 10 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Linux |
